title = "NETWORK VIDEO RECORDER(RZ/G2N)"
url = "/solutions/network-video-recorderrz-g2n"
layout = "page-solutions"
is_hidden = 0
navigation_hidden = 0
==

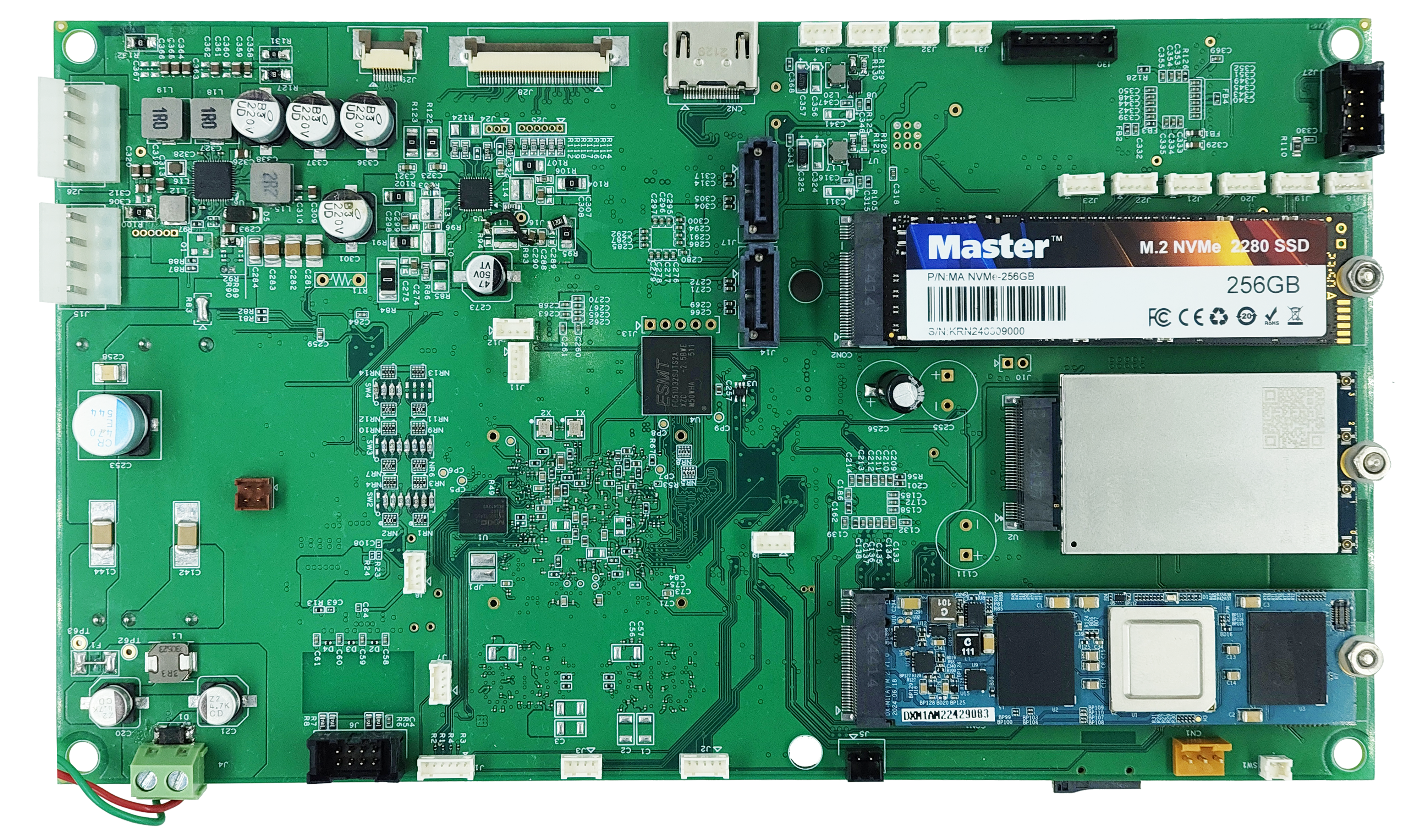

<h1><strong>NETWORK VIDEO RECORDER(RZ/G2N)</strong></h1><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/nvr.png" style="width: 401px;" class="fr-fic fr-dib fr-fil"></h2><h2><br></h2><h2>Description</h2><p>NVR (Network Video Recorder) is a video recording system over network, commonly used for surveillance and security purposes. This device streams security video footage from IP cameras and records the footage in digital format on to a sata hard drive. NVRs Uses wired or wireless network to connect to IP cameras. streams are transferred using TCP or UDP protocol.</p><p><br></p><h2>Features</h2><ul style="list-style-type: disc;"><li>Runs Linux Kernel 5.10 with Yocto Root File System (RFS)</li><li>Streams video from IP cameras over a wired network that can be configured up to 16 channels&nbsp;</li><li>Uses real-time streaming protocol (RTSP) based on client-server architecture</li><li>Uses H.265 and H.264 decoder and Wayland sink with 4K resolution</li><li>Simultaneously stores streamed data onto the hard disk through the SATA interface&nbsp;</li><li>Selectively play back stored streams</li><li>Uses open source GStreamer plugins pipeline to parse and decode the RTSP Packets</li><li>Capable of rendering videos from 16 tiles onto a single window that can be monitored over the HDMI Interface</li><li>Can be used for basic analytics using OpenCV algorithms</li><li>Supports QT for GUI application development</li><li>Supports scaling</li><li>MCU with OTP area for network MAC ID</li><li>6-Port USB smart hub with:<p>- Five standard USB 3.2 Gen 2 downstream ports.</p><p>- One standard USB 2.0 downstream port.</p></li></ul><p><br></p><h2>Software Environment</h2><ul style="list-style-type: disc;"><li>Host setup: Ubuntu 20.04 LTS</li><li>Open source GStreamer version 1.0&nbsp;</li><li>Yocto SDK RZ/G verified Linux package for 64-bit kernel, BST version 3.0.X</li><li>Software stacks supported:&nbsp;</li></ul><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web browser: Firefox</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web server: Apache / Lighttpd</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Backend script: PHP</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - RDBMS support: MySQL / SQLite</p><h2><br></h2><h2>Applications&nbsp;</h2><ul style="list-style-type: disc;"><li>Public Safety&nbsp;</li><li>Traffic Monitoring&nbsp;</li><li>Industrial Monitoring&nbsp;</li><li>Video Surveillance</li></ul><p><br></p><h2>NVR Hardware Features</h2><ul style="list-style-type: disc;"><li>It uses all automotive-type connectors&nbsp;</li><li>Operating input voltage: 18-24VDC&nbsp;</li><li>Battery-14.8V, 2000MHz, 3hr</li><li>MAC ID storing and secure chip</li><li>STQC-approved secure element S5D9</li><li>Magnetics on board</li><li>Audio codec DA7218 for 2mics</li><li>Stereo jack speaker out</li><li>TLV320AD510 for 4 mic out</li><li>HDMI out</li><li>Isolated IO ports-4 pins</li><li>SATA interface</li><li>Display HDMI / LVDS with cap touch</li><li>1Gbps Ethernet</li><li>USB 3.0, USB 2.0&nbsp;</li><li>Mini-PCIE for Quectel EC25 modem / mini SATA</li><li>8 GPIO non-isolated pins</li><li>2 ports IIC, 3UART RS232 port, 1 CAN 2.0</li></ul><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/Slide26.png" style="width: 894px;" class="fr-fic fr-dib fr-fil"></h2><p><br></p><p><br></p>";s:5:"mtime";i:1761220034;s:6:"markup";s:3320:"<h1><strong>NETWORK VIDEO RECORDER(RZ/G2N)</strong></h1><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/nvr.png" style="width: 401px;" class="fr-fic fr-dib fr-fil"></h2><h2><br></h2><h2>Description</h2><p>NVR (Network Video Recorder) is a video recording system over network, commonly used for surveillance and security purposes. This device streams security video footage from IP cameras and records the footage in digital format on to a sata hard drive. NVRs Uses wired or wireless network to connect to IP cameras. streams are transferred using TCP or UDP protocol.</p><p><br></p><h2>Features</h2><ul style="list-style-type: disc;"><li>Runs Linux Kernel 5.10 with Yocto Root File System (RFS)</li><li>Streams video from IP cameras over a wired network that can be configured up to 16 channels&nbsp;</li><li>Uses real-time streaming protocol (RTSP) based on client-server architecture</li><li>Uses H.265 and H.264 decoder and Wayland sink with 4K resolution</li><li>Simultaneously stores streamed data onto the hard disk through the SATA interface&nbsp;</li><li>Selectively play back stored streams</li><li>Uses open source GStreamer plugins pipeline to parse and decode the RTSP Packets</li><li>Capable of rendering videos from 16 tiles onto a single window that can be monitored over the HDMI Interface</li><li>Can be used for basic analytics using OpenCV algorithms</li><li>Supports QT for GUI application development</li><li>Supports scaling</li><li>MCU with OTP area for network MAC ID</li><li>6-Port USB smart hub with:<p>- Five standard USB 3.2 Gen 2 downstream ports.</p><p>- One standard USB 2.0 downstream port.</p></li></ul><p><br></p><h2>Software Environment</h2><ul style="list-style-type: disc;"><li>Host setup: Ubuntu 20.04 LTS</li><li>Open source GStreamer version 1.0&nbsp;</li><li>Yocto SDK RZ/G verified Linux package for 64-bit kernel, BST version 3.0.X</li><li>Software stacks supported:&nbsp;</li></ul><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web browser: Firefox</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web server: Apache / Lighttpd</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Backend script: PHP</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - RDBMS support: MySQL / SQLite</p><h2><br></h2><h2>Applications&nbsp;</h2><ul style="list-style-type: disc;"><li>Public Safety&nbsp;</li><li>Traffic Monitoring&nbsp;</li><li>Industrial Monitoring&nbsp;</li><li>Video Surveillance</li></ul><p><br></p><h2>NVR Hardware Features</h2><ul style="list-style-type: disc;"><li>It uses all automotive-type connectors&nbsp;</li><li>Operating input voltage: 18-24VDC&nbsp;</li><li>Battery-14.8V, 2000MHz, 3hr</li><li>MAC ID storing and secure chip</li><li>STQC-approved secure element S5D9</li><li>Magnetics on board</li><li>Audio codec DA7218 for 2mics</li><li>Stereo jack speaker out</li><li>TLV320AD510 for 4 mic out</li><li>HDMI out</li><li>Isolated IO ports-4 pins</li><li>SATA interface</li><li>Display HDMI / LVDS with cap touch</li><li>1Gbps Ethernet</li><li>USB 3.0, USB 2.0&nbsp;</li><li>Mini-PCIE for Quectel EC25 modem / mini SATA</li><li>8 GPIO non-isolated pins</li><li>2 ports IIC, 3UART RS232 port, 1 CAN 2.0</li></ul><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/Slide26.png" style="width: 894px;" class="fr-fic fr-dib fr-fil"></h2><p><br></p><p><br></p>";s:4:"code";N;s:7:"viewBag";a:5:{s:5:"title";s:30:"NETWORK VIDEO RECORDER(RZ/G2N)";s:3:"url";s:39:"/solutions/network-video-recorderrz-g2n";s:6:"layout";s:14:"page-solutions";s:9:"is_hidden";s:1:"0";s:17:"navigation_hidden";s:1:"0";}s:12:"parsedMarkup";s:3320:"<h1><strong>NETWORK VIDEO RECORDER(RZ/G2N)</strong></h1><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/nvr.png" style="width: 401px;" class="fr-fic fr-dib fr-fil"></h2><h2><br></h2><h2>Description</h2><p>NVR (Network Video Recorder) is a video recording system over network, commonly used for surveillance and security purposes. This device streams security video footage from IP cameras and records the footage in digital format on to a sata hard drive. NVRs Uses wired or wireless network to connect to IP cameras. streams are transferred using TCP or UDP protocol.</p><p><br></p><h2>Features</h2><ul style="list-style-type: disc;"><li>Runs Linux Kernel 5.10 with Yocto Root File System (RFS)</li><li>Streams video from IP cameras over a wired network that can be configured up to 16 channels&nbsp;</li><li>Uses real-time streaming protocol (RTSP) based on client-server architecture</li><li>Uses H.265 and H.264 decoder and Wayland sink with 4K resolution</li><li>Simultaneously stores streamed data onto the hard disk through the SATA interface&nbsp;</li><li>Selectively play back stored streams</li><li>Uses open source GStreamer plugins pipeline to parse and decode the RTSP Packets</li><li>Capable of rendering videos from 16 tiles onto a single window that can be monitored over the HDMI Interface</li><li>Can be used for basic analytics using OpenCV algorithms</li><li>Supports QT for GUI application development</li><li>Supports scaling</li><li>MCU with OTP area for network MAC ID</li><li>6-Port USB smart hub with:<p>- Five standard USB 3.2 Gen 2 downstream ports.</p><p>- One standard USB 2.0 downstream port.</p></li></ul><p><br></p><h2>Software Environment</h2><ul style="list-style-type: disc;"><li>Host setup: Ubuntu 20.04 LTS</li><li>Open source GStreamer version 1.0&nbsp;</li><li>Yocto SDK RZ/G verified Linux package for 64-bit kernel, BST version 3.0.X</li><li>Software stacks supported:&nbsp;</li></ul><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web browser: Firefox</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Web server: Apache / Lighttpd</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - Backend script: PHP</p><p>&nbsp; &nbsp; &nbsp; &nbsp; - RDBMS support: MySQL / SQLite</p><h2><br></h2><h2>Applications&nbsp;</h2><ul style="list-style-type: disc;"><li>Public Safety&nbsp;</li><li>Traffic Monitoring&nbsp;</li><li>Industrial Monitoring&nbsp;</li><li>Video Surveillance</li></ul><p><br></p><h2>NVR Hardware Features</h2><ul style="list-style-type: disc;"><li>It uses all automotive-type connectors&nbsp;</li><li>Operating input voltage: 18-24VDC&nbsp;</li><li>Battery-14.8V, 2000MHz, 3hr</li><li>MAC ID storing and secure chip</li><li>STQC-approved secure element S5D9</li><li>Magnetics on board</li><li>Audio codec DA7218 for 2mics</li><li>Stereo jack speaker out</li><li>TLV320AD510 for 4 mic out</li><li>HDMI out</li><li>Isolated IO ports-4 pins</li><li>SATA interface</li><li>Display HDMI / LVDS with cap touch</li><li>1Gbps Ethernet</li><li>USB 3.0, USB 2.0&nbsp;</li><li>Mini-PCIE for Quectel EC25 modem / mini SATA</li><li>8 GPIO non-isolated pins</li><li>2 ports IIC, 3UART RS232 port, 1 CAN 2.0</li></ul><p><br></p><h2><img src="https://www.smetgroup.com/storage/app/media/uploaded-files/Slide26.png" style="width: 894px;" class="fr-fic fr-dib fr-fil"></h2><p><br></p><p><br></p>";}}
